5.1.2. H-AxisReducer

5.1.2. H-AxisReducer





Attention   If grease is added without removing the outlet plug, it cause damage to the seal of reducer and grease will go inside the motor and may damage it. It is absolutely necessary to remove the plug.



n Grease Replacement



(1)   Make the H-Axis Arm vertical for ground.(H:90°-Floor Type, H:0°-Shelf Type)

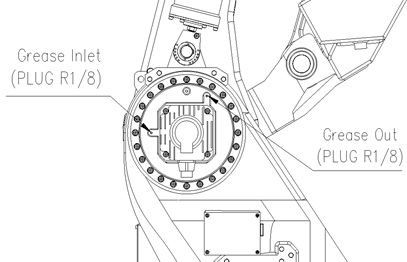

(2)   Remove the grease outlet plug.



(3)   Inject the grease into the grease inlet using a grease gun.



ü  Grease type : VIGO GREASE RE0 ü  Amount of grease : 1,600cc



(4)   The grease replacement is complete when new grease appears in the outlet port. The new grease can be distinguished from the old one by color.



(5)   Discharge excessively fueled grease and residual pressure. (Refer to the discharge procedure below.)



(6)   Clean the greased around the outlet and assemble the seal-taped plug into its original state.



n Procedure in discharging excessively fueled grease and residual pressure after grease replacement and injection



(1)   Attach a grease receiver or a hose to the grease outlet to prevent contamination from discharged grease.



(2)   Operate it within a range without surrounding and interference under the following conditions.

①    Operation angle : 90° or more

②    Operation speed : 100%

③    Operation time: 20 minutes or more



(3)   Wipe the outlet port with a cloth and attach the plug.



Caution   If the specification of the currently filled grease is MOLYWHITE RE00, you must fill the VIGO GREASE RE0 grease after more than 100 hours of operation.
