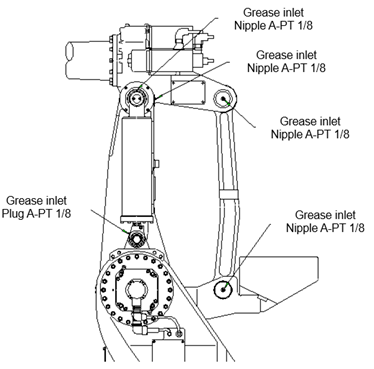

5.1.10. Bearing supporter

n Grease Replenishment

(1) Prepare a grease nipple A-PT1/8.

(2) When necessary, remove the inlet plug and assemble the nipple A-PT1/8.

(3) Inject the grease into the grease inlet using a grease gun.

ü Grease type : Gadus S2 V46 2

ü Amount of grease : 5cc

(4) Remove grease nipple A-PT1/8 from grease inlet port.
