8.2.1. Separating the Gas Spring

8.2.1. Separating the Gas Spring



When separating the gas spring, you must keep the H axis in the posture shown in the figure below. In this posture, the compression force of the gas spring will be minimized so that it can be separated from the robot. Therefore, even if the gas spring is separated from the manipulator, the compression force by the spring will be in balanced state, so the risk factors in the separation process will be minimized.

However, when required to separate the gas spring for disposing of it or repairing its internal parts, you should first remove the gas completely in accordance with the procedure for discharging gas from the gas spring.

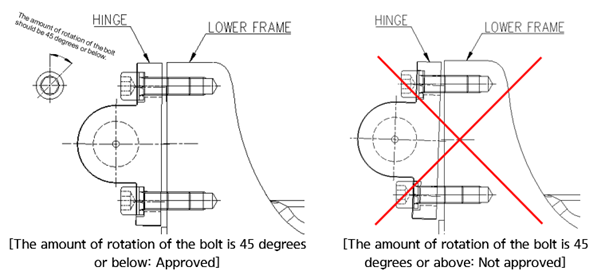

Caution   ü  When fastening or loosening the hinge bolts to separate or disassemble the gas spring, you need to rotate the upper and lower bolts alternately at less than 45 degrees as shown in the figure below to prevent the hinge from being excessively tilted.  Excessive tilting of the hinge will damage the bolt screw, and thus damaged bolt screw will damage even the tap of the lower frame, making it difficult to perform the disassembling and assembling works.   ü  The shape of each part, such as the hinge, may change according to the design for mass production.
