6.5.2. Resetting the Encoder

6.5.2. Resetting the Encoder​



(1)    Turn off the motor.

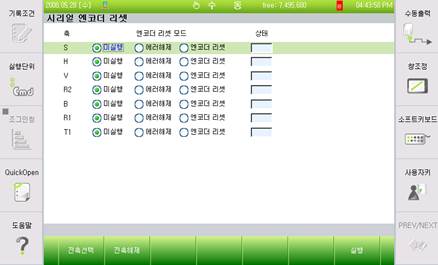

(2)    Bring up the serial encoder resetting window (『[F2]: System』 → 『5: Initialize』 → 『4: Reset the Serial Encoder』.)







(3)    Move to the targeted axis by using the [↓],[↑], and [SHIFT]+[←][→] keys. After that press the [Execute] key.



(4)    After resetting the encoder, you must switch the controller power from the Off state to the On state.
