2.7. Application Wiring and Inspection Wiring Diagram

There are air unit and connector to connect the additional equipment to the robot manipulator.

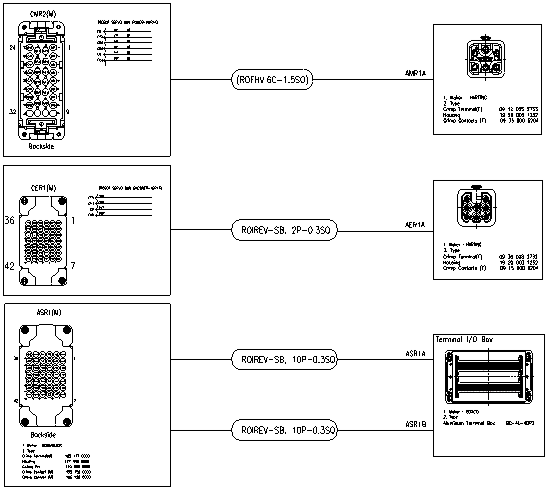

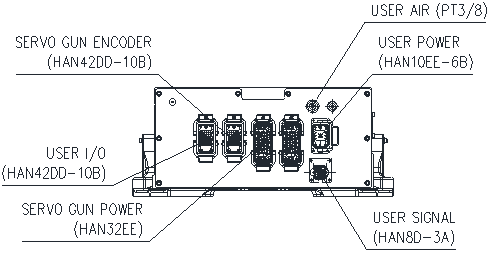

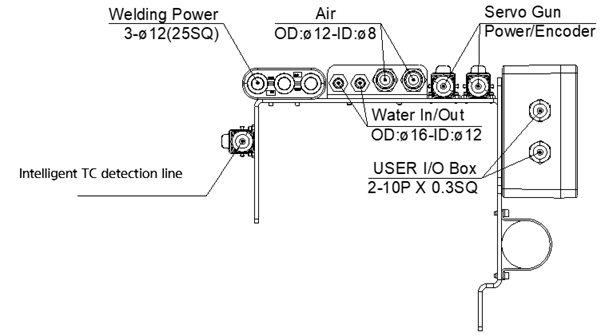

Application connectors are indicated as follows.

[Note] Maximum air pressure: 5bar (5.1 kgf/cm2 ,72.5 psi)
