2.4. External dimensions and operation area of the main body

2.4. External dimensions and operation area of the main body​

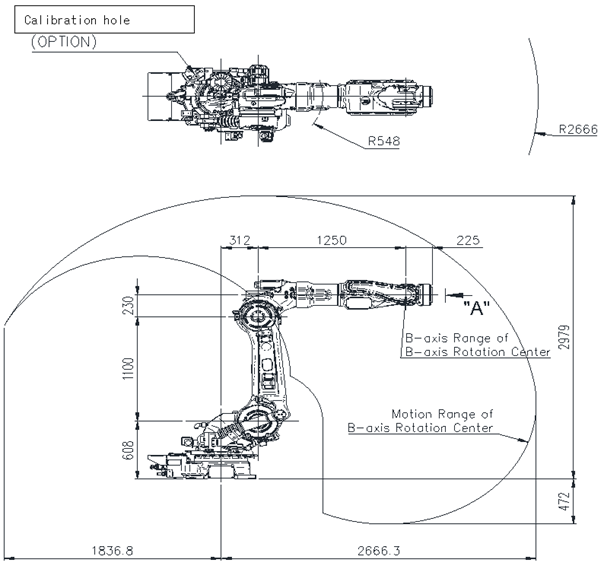

Figure 2.3 External dimensions and operation area of the robot’s main body
