5.1.8. Wrist - Gear Box

5.1.8. Wrist - Gear Box





n  Grease Replenishment



(1)   Prepare a grease nipple A-PT1/8.

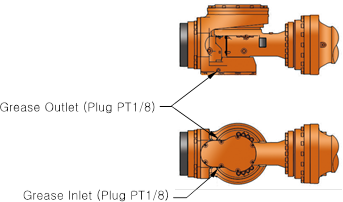

(2)   Remove the grease inlet plug and install grease nipple A-PT1/8.



(3)   Inject the grease into the grease inlet using a grease gun.



ü  Grease type : VIGO GREASE RE0 ü  Amount of grease : 30cc(27g)



Caution   If the specification of the currently filled grease is MOLYWHITE RE00, you must fill the VIGO GREASE RE0 grease after more than 100 hours of operation.



(4)   Remove grease nipple A-PT1/8 from grease inlet port.



(5)   Reinstall the grease plugs with seal tape.
