5.1.6. R1-Axis Reduction Gear

5.1.6. R1-Axis Reduction Gear





Attention   Do not inject excessive grease. The excessive grease would cause an abnormal operation.



n  Grease Replenishment

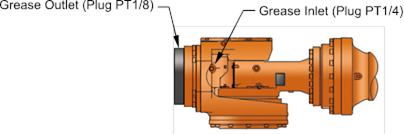

(1)   Prepare a grease nipple A-PT1/4 and then make the R2-Axis 90°degree.



(2)   Remove the grease inlet plug and install grease nipple A-PT1/4.



(3)   Inject the grease into the grease inlet using a grease gun.



ü  Grease type : VIGO GREASE RE0 ü  Amount of grease : 200cc(180g)



Caution   If the specification of the currently filled grease is MOLYWHITE RE00, you must fill the VIGO GREASE RE0 grease after more than 100 hours of operation.



(4)   Wipe the outlet port with a cloth and reinstall the inlet/outlet plugs with seal tape
