2.4. Robot Dimension and Working Envelope

2.4. Robot Dimension and Working Envelope





Figure 2.3 Robot Dimension and Working Envelope: [HR050]

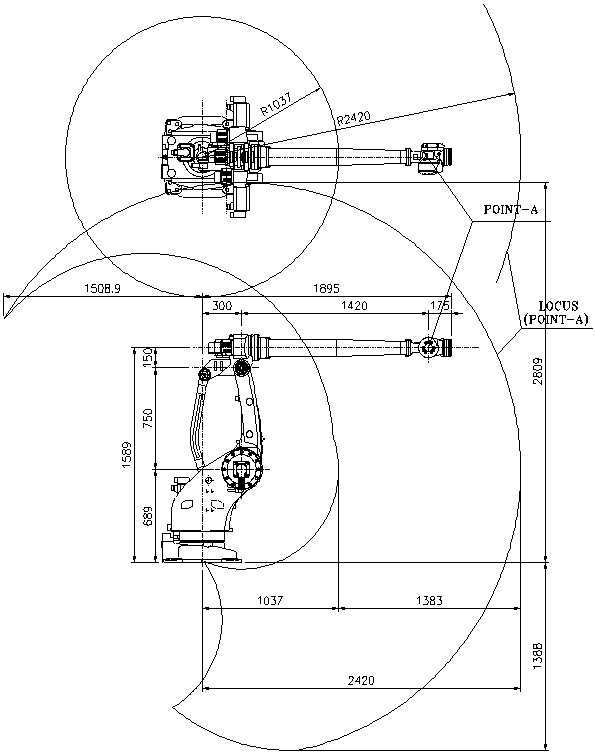

Figure 2.4 Robot Dimension and Working Envelope: [HR030L]
