2.6.1. Detailed drawings of wiring connector for application
2.6.1. Detailed drawings of wiring connector for application

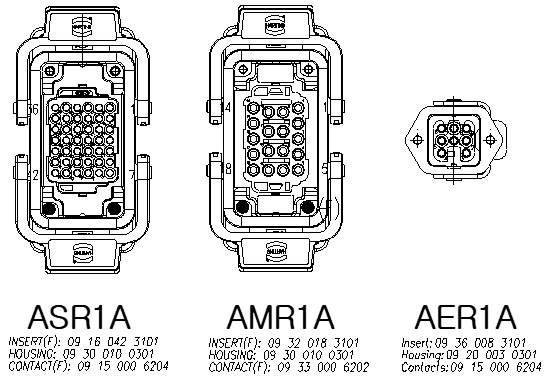

Figure 2.6 Detailed drawings of application connector
Table 2‑3 Basic specifications by models
Classifi-cation | Cable Specification | Connector Type | |||
Series | Part No. | ||||
FEMALE | MALE | ||||
AMR | 2sq * 12 pcs | Han18EE | INSERT | 09-32-018-3101 | 09-32-018-3001 |
HOUSING | 09-30-010-0301 | 09-30-010-0301 | |||
CONTACT | 09-33-000-6202 | 09-33-000-6102 | |||
AER | 0.3sq * 14 pcs | Han15D | INSERT | 09-21-015-3101 | 09-21-015-3001 |
HOUSING | 09-20-010-0301 | 09-20-010-0301 | |||
CONTACT | 09-15-000-6204 | 09-15-000-6104 | |||
ASR | 0.3sp * 40 pcs | Han42DD | INSERT | 09-16-042-3101 | 09-19-042-3001 |
HOUSING | 09-30-010-0301 | 09-30-010-0301 | |||
CONTACT | 09-15-000-6204 | 09-15-000-6104 | |||
AVR | To be designated by users | - | INSERT |
|
|
HOUSING |
|
| |||
CONTACT |
|
| |||
