2.7. Details of Wrist Axis Attachment Surface

2.7. Details of Wrist Axis Attachment Surface​



When attaching the operating tool to the mechanical interface of robot's wrist flange, fasten it with a bolt at P.C.D. 125

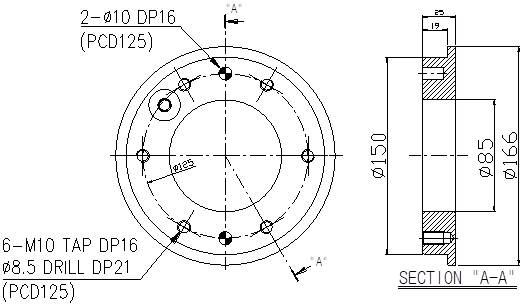

Figure 2.7 Details of Wrist Axis Attachment Surface
