3.5.1. Permitted load torque estimation

3.5.1. Permitted load torque estimation



The load, which will be applied to the mechanical interface of robot's wrist axis, is restricted by allowable weight, allowable load torque and allowable moment of inertia.



Refer to [Figure 3.6] so that load may not exceed the allowable conditions.



n Step 1 (Allowable weight)

To check whether weight is within the allowable weight on the design spec of robot



n Step 2 (Allowable load torque)

As unbalance torque does not exist on the wrist axis due to property of palletizing robot, allowable load torque is not considered in the calculation of load.



n Step 3 (Allowable moment of inertia)

Calculate the value of moment of inertia of load at the center of wrist axis (JR2).

Moment of inertia at the center of rotation of JR2- R2 axis

Check whether the value of moment of inertia is below limited value.

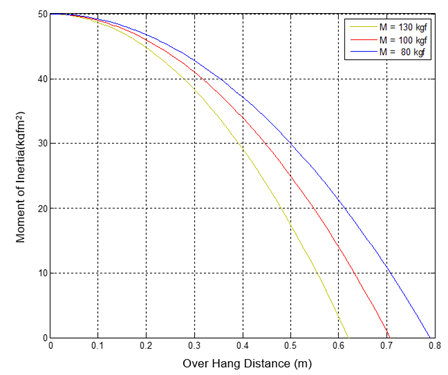

Figure3.6 Wrist axis load condition



 Allowable Moment of Inertia



Table 3‑1 Load on the wrist axis

Robot Model	R2 Axis Rotation
	Allowable weight	Allowable load torque	Allowable moment of inertia
HP130	130 kgf	-	50kgfm2
