4.3. Inspection of Main External Bolts

4.3. Inspection of Main External Bolts​



 The recommended bolt torque is shown in [Figure 4.1] ~ [Figure 4.2].

Apply the appropriate torque, where required, using the torque wrench and place the paint marking where the check-up is completed. Use 12.9T(strength grade) for bolts.



Table 4‑3 Inspection part for main bolts

No.

Inspection parts

No.

Inspection parts

1

H axis reducer assembly bolt

5

For 1st arm assembly

2

V axis reducer assembly bolt

6

For B axis motor assembly

3

H axis motor assembly bolt

7

For End Effector assembly

4

V axis motor assembly bolt

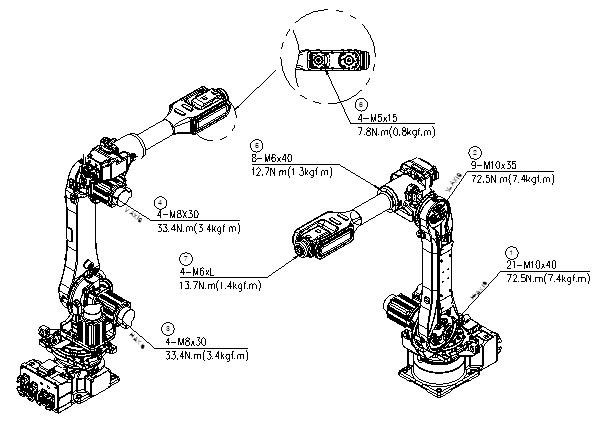

Figure 4.1Inspection part for main bolts
