9.4.2. Assemble Assembled Gas Spring Substances

9.4.2. Assemble Assembled Gas Spring Substances​



The H-axis angle must be assembled in the position as shown in [Figure 9.6] to assemble assembled gas spring substances. Assembly is available at this position because a compressive force of the balance spring had been minimized in the position

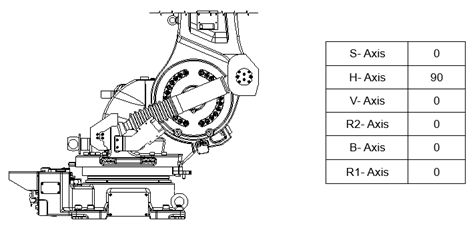

Figure 9.6 Gas Spring Assembly Position



Warning



ü  When fastening and loosening the bolts of the hinge of the assembly unit of the gas spring, work at the bolts at the top and bottom and at the left and right in an alternating manner and turn the bolt 45 degrees/each time to prevent the hinge from tilting excessively.

ü  Excessive tilting of the hinge damages a screw bolt; the damaged screw bolt damages the tap of the lower frame, thereby making it hard to separate/assemble.

ü  The shape of each part, such as the hinge, is subject to change depending on a mass production design.

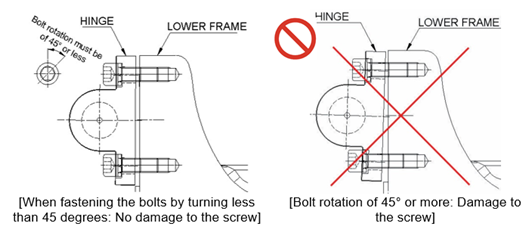

Figure 9.7 Cautions on Fastening and Loosening the Gas Spring Hinge
