1.4.3. Explode-View Drawing of the Two-Axis Positioner

1.4.3. Explode-View Drawing of the Two-Axis Positioner



P.C.D 125 bolts should be used to attach a working tool to the flange of the front end of the wrist axis.

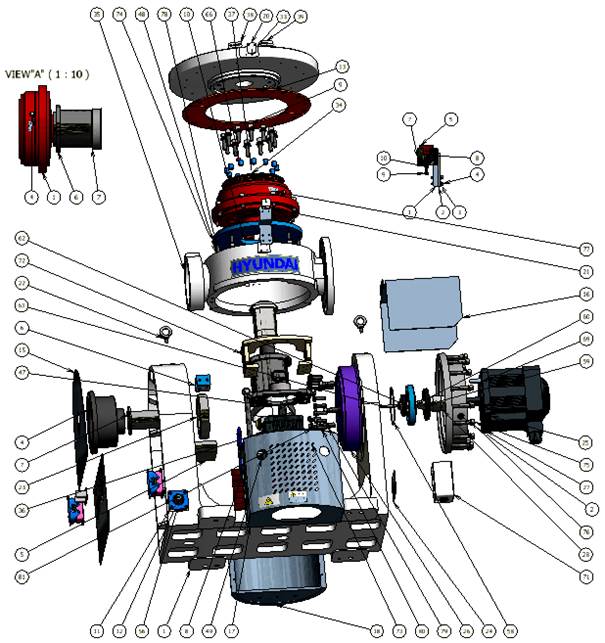

Figure 1.5 2 Exploded-View Drawing of a Two-Axis Positioner
