5.1.2. H, V-Axis Reduction gear

5.1.2. H, V-Axis Reduction gear

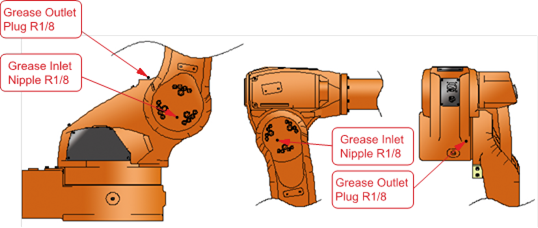

(1)   HA006





Attention If you do not remove the outlet plug before supplying the grease, the grease can get into the motor to damage the motor. Always remove the plug.



n Supply grease



①    Keep the H axis arm vertically and the V axis horizontally.

②    Remove the outlet plug.

③    Supply the grease using the grease gun through the inlet.



ü  Type of grease : VIGOGREASE RE0 ü  Amount of grease : 20cc(18g)



④    Wipe the outlet with a cloth and assemble the plug wrapped with sealing tape.



Caution If the specification of the currently filled grease is MOLYWHITE RE00, you must fill the VIGO GREASE RE0 grease after more than 100 hours of operation.



n Change grease



①    Keep the H axis arm vertically and the V axis horizontally.

②    Remove the outlet plug.

③    Supply the grease using the grease gun through the inlet.



ü  Type of grease : VIGOGREASE RE0 ü  Amount of grease : 105cc(94.5g)



④    Supply the grease until new grease is discharged on the outlet. You can check the new grease by the color.

⑤    After pulling out the old grease by moving the H axis for couple of minutes, resupply the grease until it comes to the outlet.

⑥    Wipe the outlet with a cloth and assemble the plug wrapped with sealing tape.

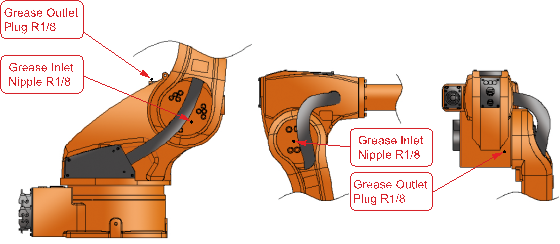

(2)   HA020W/HA010LW





Attention If you do not remove the outlet plug before supplying the grease, the grease can get into the motor to damage the motor. Always remove the plug.



n Supply grease



①    Keep the H axis arm vertically and the V axis horizontally.

②    Remove the outlet plug.

③    Supply the grease using the grease gun through the inlet.



ü  Type of grease : VIGOGREASE RE0 ü  Amount of grease : 50cc(45g)



④    Wipe the outlet with a cloth and assemble the plug wrapped with sealing tape.



Caution If the specification of the currently filled grease is MOLYWHITE RE00, you must fill the VIGO GREASE RE0 grease after more than 100 hours of operation.



n Change grease



①    Keep the H axis arm vertically and the V axis horizontally.

②    Remove the outlet plug.

③    Supply the grease using the grease gun through the inlet.



ü  Type of grease : VIGOGREASE RE0 ü  Amount of grease : 50cc(45g)



④    Supply the grease until new grease is discharged on the outlet. You can check the new grease by the color.

⑤    After pulling out the old grease by moving the H axis for couple of minutes, resupply the grease until it comes to the outlet.

⑥    Wipe the outlet with a cloth and assemble the plug wrapped with sealing tape.
