5.1.1. S-AxisReduction gear
5.1.1. S-AxisReduction gear

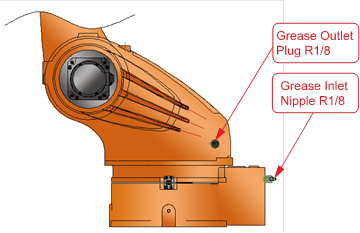

(1) HA006
| Attention If you do not remove the outlet plug before supplying the grease, the grease can get into the motor to damage the motor. Always remove the plug.
|
n Supply grease
① Remove the outlet plug.
② Supply the grease using the grease gun through the inlet.
ü Grease type : VIGO GREASE RE0 ü Amount of grease : 50cc(45g) |
③ Wipe the outlet with a cloth and assemble the plug wrapped with sealing tape.
| Caution If the specification of the currently filled grease is MOLYWHITE RE00, you must fill the VIGO GREASE RE0 grease after more than 100 hours of operation. |
n Change grease
① Remove the outlet plug.
② Supply the grease using the grease gun through the inlet.
ü Type of grease : VIGO GREASE RE0 ü Amount of grease : 280cc(252g) |
③ Supply the grease until new grease is discharged on the outlet. You can check the new grease by the color.
④ Wipe the outlet with a cloth and assemble the plug wrapped with sealing tape.

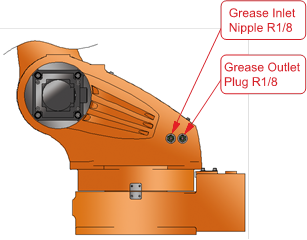

(2) HA020W/HA010LW
| Attention If you do not remove the outlet plug before supplying the grease, the grease can get into the motor to damage the motor. Always remove the plug. |
n Supply grease
① Remove the outlet plug.
② Supply the grease using the grease gun through the inlet.
ü Type of grease : VIGO GREASE RE0 ü Amount of grease : 110cc(99g) |
③ Wipe the outlet with a cloth and assemble the plug wrapped with sealing tape.
| Caution If the specification of the currently filled grease is MOLYWHITE RE00, you must fill the VIGO GREASE RE0 grease after more than 100 hours of operation. |
n Change grease
① Remove the outlet plug.
② Supply the grease using the grease gun through the inlet.
ü Type of grease : VIGO GREASE RE0 ü Amount of grease : 110cc(99g) |
③ Supply the grease until new grease is discharged on the outlet. You can check the new grease by the color.
④ Wipe the outlet with a cloth and assemble the plug wrapped with sealing tape.
