3.3. Monitoring

3.3. Monitoring



1.   Access Path

- F1.Service → 1: Monitoring → 16: System Property Data → 13: Vacuum Robot Sensor Data



2.   Settings Screen

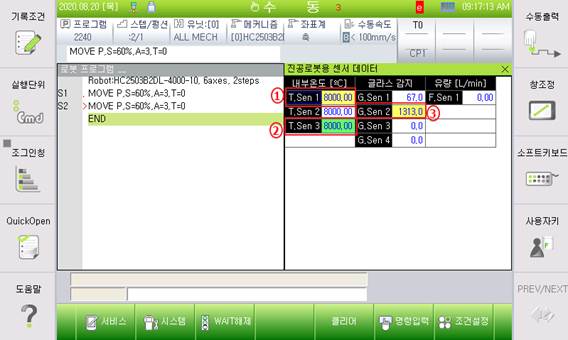

Figure3.3 Sensor Monitoring Dialog



3.   Item Descriptions

1 Yellow background for an internal temperature/flow item

è  A measured value is smaller than the setting value (below the reference value).

2 Green background for an internal temperature/flow item

è  A measured value is larger than the setting value (over the reference value).

3 Yellow background for a glass detection item

è  Glass detection state
