A sealer application is used for the robot controller to directly control the application amount of the sealing process to apply the sealer solution on a workpiece for adhesion, waterproofness, or vibration control. Generally, the sealer application process consists of a pump, filter unit, and a gun booster unit, but this function covers the control of a gun booster unit that has a direct connection with the application amount control.

This function provides initial pressurization control before discharge for initial quality and support for different application methods based on process characteristics through constant quantity and speed discharges as well as robot speed-synchronized discharge control modes.

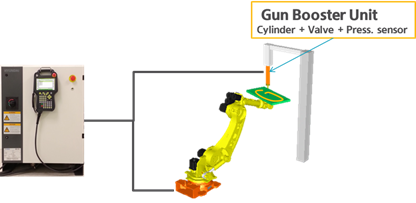

Figure1.1 Embedded sealer application system of robot controller





Figure 1.2 Gun booster unit (Cylinder type)



State	DAMPING V/V	Outlet V/V	Rod Position	Pressure State	Fluid State
Standstill	Closed	Closed	-	Waiting pressure	Standstill
Pressurizing	Closed	Closed	-	<>Set pressurization	Standstill
Pressurized	Closed	Closed	-	≒Set pressurization	Standstill
Discharge	Closed	Open	0–100%	Discharge pressure	Discharge
Filling	Open	Closed	0 à 90%	Pump pressure	Filling
