2.3.1. Pallet information

2.3.1. Pallet information

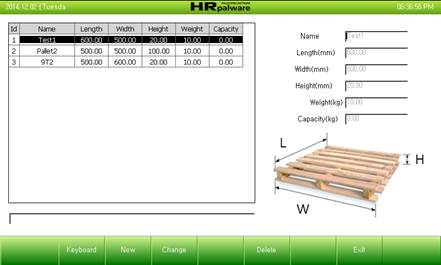

Figure 2.4 Pallet information menu

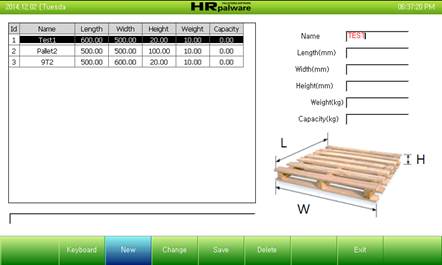

Figure 2.5 Results after pushing the New button



The pallet information consists of the name, length, width, height, weight, and weight capacity (Figure 2.4). Weight means the weight of the pallet itself, and the weight capacity means the maximum load that the pallet can endure. The button menu includes Add, Change, Delete, and Save with the following respective functions.



(1)    New

The New button is used to add new data. When the New button is pressed, a soft keyboard will pop up to input the palletize name. After the input, the Save button will show up as in (Figure 2.5). After inputting the remaining data, the user shall press the Save button to save.



(2)    Changing

The Change button is used to alter one of the listed items. After an item is changed, when the Save button is pressed, just like the case of using the new button, the changed content will be saved in a file.



(3)    Deleting

The Delete

 button is used to delete one of the listed items.



(4)    Saving

The Save button is used to save the relevant content after carrying out the New or Change process.
