2.5. Test result - Monitoring

2.5. Test result - Monitoring



You can view the progress and result of the function on the monitoring window.



You can check it by selecting [Service] → [1. Monitoring] → [21. Learning control data].



-   [Data No.] matches the IL option number.

-   [Program No.] matches the job program number of the IL option.

-   [Step No.] matches the step number of the IL option.

-   [Progress] shows the learning progress of the step of the IL option. 100% means that the learning has been completed.



Inserting an IL option in a step of the job program will assign the job program number and the step number for which the IL option is input in the [Data No.] matching the IL option number.

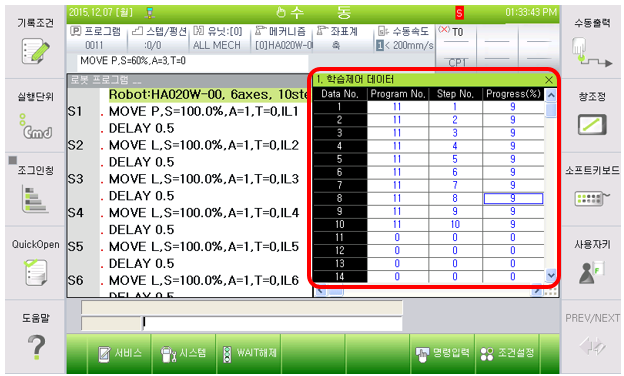

Figure 2.3 Window for monitoring the state of the learning control function
