6.3. Embedded DeviceNet Slave IO Monitoring​



Follow the next procedure to monitor the embedded DeviceNet slave IO data.



(1)   Select “[F1]: Service” → “1: Monitoring” → “3: Fieldbus signal.”



(2)   Select “9: FB5 Fieldbus input” for input and “10: FB5 Fieldbus output” for output.





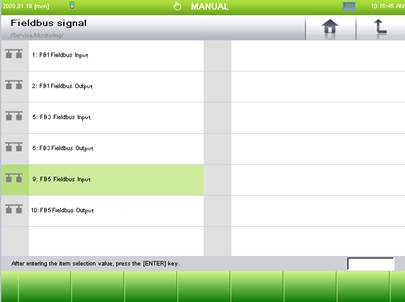

Figure 6.7 Embedded DeviceNet slave I/O monitoring menu



(3)    The I/O of the embedded DeviceNet slave can be monitored.





Figure 6.8 Embedded DeviceNet slave I/O monitoring screen
