5.1. Introduction of Cooperation Playback

5.1. Introduction of Cooperation Playback



Individual operation is the general control method as same as the individual operation method, and the cooperation operation is the COWORK ~ COWORK END part in which the program position of the master decides the slave operation.

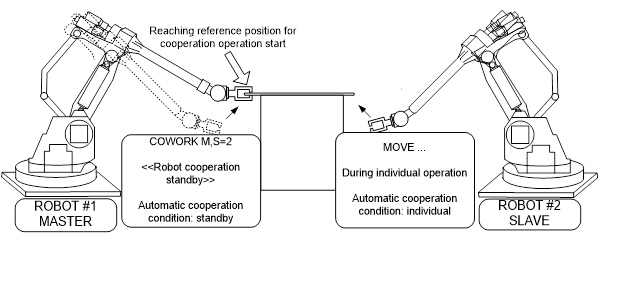

(1)   Cooperation operation part is the COWORK ~ COWORK END part and the when the COWORK command starts all collaborating robots standby until COWORK is executed.



Figure5.1 Cooperation playback 1

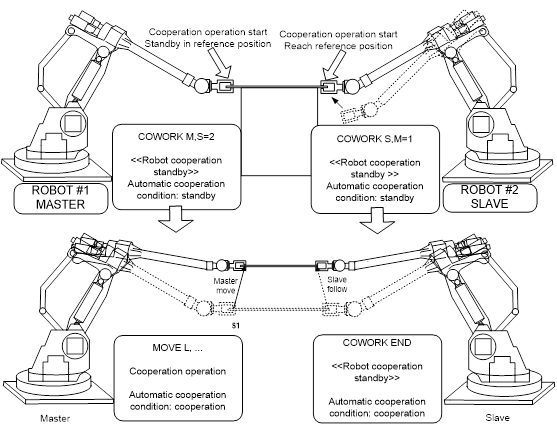

(2)   When the collaborating robots are all in COWORK position, the cooperation operation starts.



Figure 5.2 Cooperation playback 2

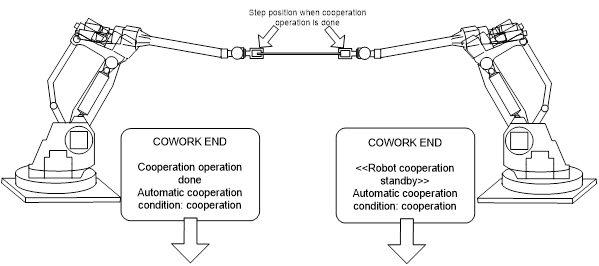

(3)   If the collaborative zone operation is completed, master reaches the COWORK END command to end the cooperation condition.





Figure 5.3 Cooperation playback 3

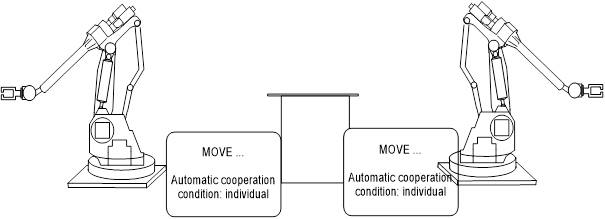

(4)    When the cooperation operation is completed, each individual operation is resumed.



Figure 5.4 Cooperation playback 4
