7.3. Arc welding data management function
7.3. Arc welding data management function
This function allows for the loading of stored arc welding data files into the teach pendant and also provides data search and display functionality in visual tools. In addition, this function provides support in setting the reference data that will be used in [7.4 Arc welding data quantification function]. In order to use this function, there should be at least one stored welding data file in the teach pendant.

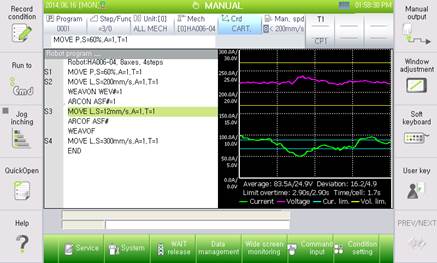

It is necessary to set the monitoring window as the arc welding wave monitoring window, and then press the [F5: Data management] in manual mode to bring up the arc welding data management dialog box.
Figure 7.7 Arc welding data management function entering screen

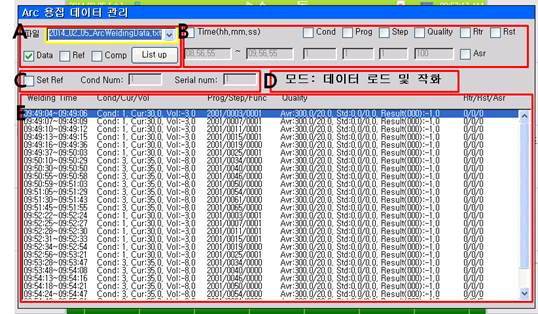

The arc welding data management dialog box is configured as below. The “A” section determines the type of file that will be loaded and also shows the list of files. The “B” section is used for entering the parameters that are needed to search the welding data. The “C” section is used to save the reference file that will be used for the arc welding quantification function. The “D” section displays the description of the current mode of the setting. The “E” section displays the list of welding data stored in the loaded file.
Figure 7.8 Arc welding data management function entering screen
7.3.1. File loading and comparison function setting (“A” on the screen)
7.3.2. Search condition setting (“B” on the screen)
7.3.3. Reference file designation (“C” on the screen)
7.3.4. Current mode indication (“D” on the screen)
