1.3.6. Arc welding signal test

1.3.6. Arc welding signal test​



The arc welding signal test function is used for testing the input and output states of the main signals and carrying out manual stick recovery. This function can be used to check any abnormality of welders or communication equipment because it determines whether a specific signal is working or not.

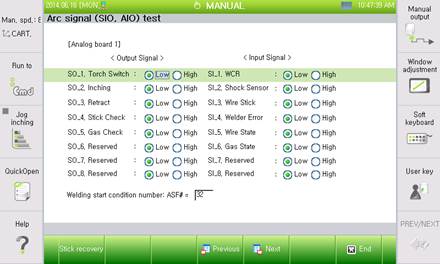

In order to use this function, enter the “ ARC Signal (SIO, AIO) Test” screen by pressing the [Shift] + [Help] keys on the basic screen of the teach pendant. Function operation can be tested by setting High/Low for the targeted signals in <Output Signal> of the “Analog Board #1” screen. In <Input Signal>, operation-specific input signals can be tested.



In addition, it is possible to carry out manual command for stick recovery by pressing [F1: Stick recovery].



Figure1.11 Arc welding current/voltage change dialog box
