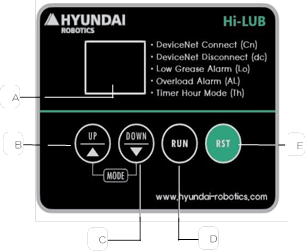

3.3. Key Function

3.3. Key Function



An external power source 24VDC, Maximum 0.8A





A.   Value Indicating (LED: Green)

•       Lights when value setting and mode setting

•       Lights when power is on



B.   Set Key : UP

•       To increase setting value in setting value change mode change setting value in function setting mode, move up checked value in function setting check mode.

•       By pressing both Run key and Up key, the motor operates infinitely



C.   Set Key : DOWN

•       To decrease setting value in setting value change mode change setting value in function setting mode, move down checked value in function setting check mode. By pressing this key over 3sec with UP key, mode progressively changes

•       Change low setting value: by pressing RST key in 5 sec with Down key, FND displays “LS” and Enter to Run key



D.   Run Key : Enter

•       Starts to operate (1-Cycle)

•        After Setting function or changing mode, press the RUN key to save



E.   Reset Key

•       By pressing RST Key in any status, operation will stop

•       By pressing RST Key in alarm status, indicator (alarm) will clear

•       By pressing RST key over 5 sec in any mode, all value changes to factory default value
