4.3.1. “HRVision Press”Communication Setup



When the robot work program preparation is completed from the robot controller, the communication of “HRVision Press” must be set.

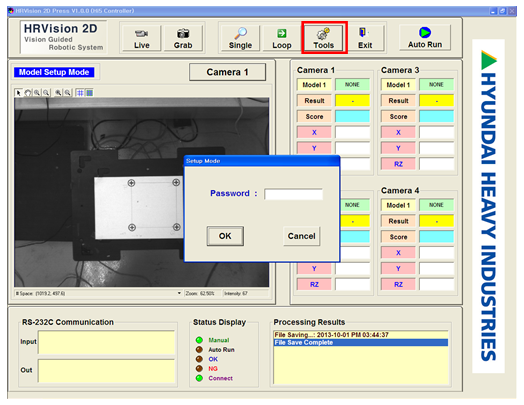

Click on the Tools button from the operating button and the following login window will appear. When purchasing “HRVision Press” enter the transmitted password.

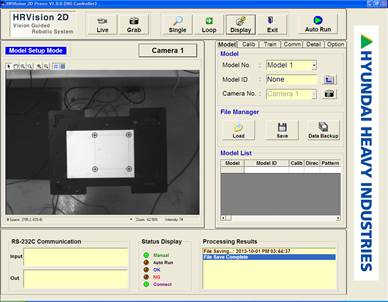

When the login is successful, the screen changes to the setup mode as follows.

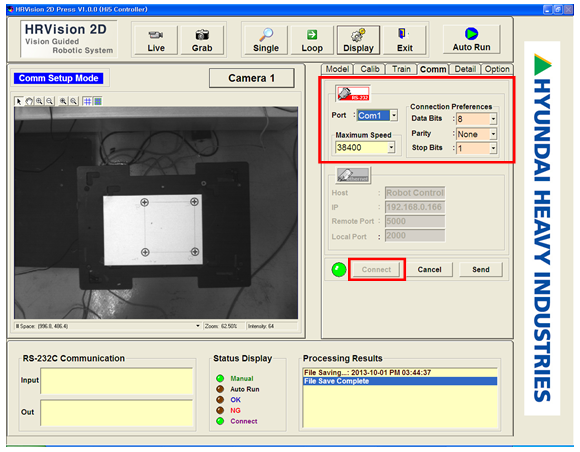

Click on the “Comm” from the setup mode. Click the communication method to be connected, configure various parameters, and click the "Connect" button. The following figure shows a screen in which connection is made with Comp port 1, and Baud Rate 38400 through RS-232.
