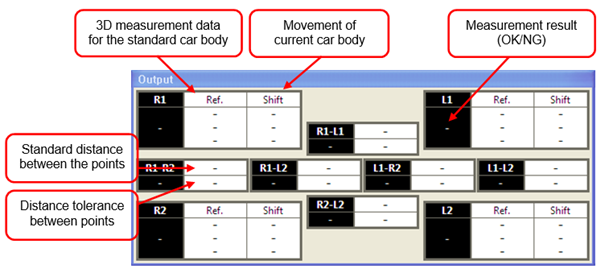

Output window shows 3D locations of 4 points of reference car body and current one as well as the distance between the 4 points, moved distance, and location tolerance for the distance between the points.





When “Ref” is selected, the 3D measurement data of the reference car body will be displayed. When “Meas.” is selected, the 3D measurement data of the current car body will be displayed.When “Raw” is selected, the data measured from the cameras will be outputted directly. When “Corr.” is selected, the result of “Auto 3D Correction,” in which the measurement error is calibrated the cameras will be outputted directly.



 If “Non-Use” is selected for “Auto 3D Correction,” the results of “Raw” and “Corr.” will be same
