3.1.1. Main Screen Configuration

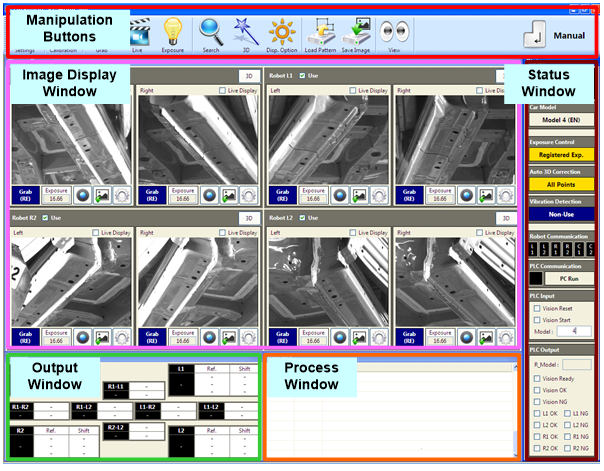

After entering the correct license key after running the program, the following screen is displayed. “HRVision 3D-MultiCam” screen consists of 5 windows, and each menu of manipulation buttons opens an independent program or new setting window.





The key function of each window is as follows.



Manipulation Buttons	Provides menus for the manipulation of “HRVision 3D-MultiCam” such as various settings, calibration, image acquisition, pattern search, 3-D position measurement and auto operation
Image Display Window	This displays the current live or grabbed image.
Process Window	This displays the communication details with the Hyundai Robot, various status display, progress details etc.
Status Window	Recognition result and communication state are displayed.
Output Window	3D location measurement result on 4 points for the reference and current car bodies. The distance between the points are displayed.
