2.3. BD525 PROFIBUS-DP slave diagnosis



It is possible to check the diagnosis information, such as communication status, setting status and error information from the teaching pendant.



(1)   Select 『[F2]: System』 → 『2: Control parameter』 → 『2: Input/Output signal setting』 → 『15: BD525 fieldbus setting and diagnosis』.



(2)   Considering that the PROFIBUS-DP slave corresponds to the channel 3, use the 『[F3]: Previous』 or 『[F4]: Next』 key to move to the channel 3 and check the diagnosis information.

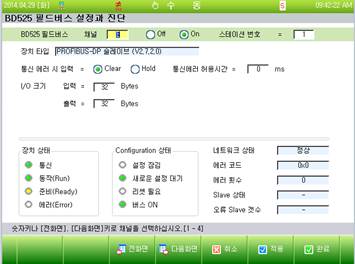

Figure 2.3 PROFIBUS-DP slave diagnosis screen



l  System status



LED	Meaning	Color	Status	Remarks
Communication	PROFIBUS-DP communication status	(Green)	Communication in progress
		(White)	Communication stopped
Run	PROFIBUS-DP setting status	(Green)	Setting normal
		(White)	Setting abnormal
Ready	PROFIBUS-DP installation status	(Yellow)	System normal
		(White)	System abnormal
Error	PROFIBUS-DP error status	(Red)	Error generated	Refer to the error code
		(White)	No error



l  Setting status



LED	Meaning	Color	Status	Remarks
Setting locked	Setting locked	(Green)	Locked
		(White)	Unlocked
New setting wait	Whether to wait for new setting	(Green)	Setting wait
		(White)	No setting
Resetting needed	System resetting required	(Green)	Resetting needed
		(White)	Resetting not needed
Bus on	Bus in the communication status	(Green)	Communication started
		(White)	Communication stopped



l  Network status



Status	Meaning
Normal	PROFIBUS-DP communication in progress (Normal IO data exchange needs to be checked through the communication LED that shows the system status)
Normal	PROFIBUS-DP communication stopped
IDLE	PROFIBUS-DP communication not in progress
Off-line	Network off-line



l  Error code



Error code	Meaning
0x00000000	No error
0xC0000120	Configuration fault
0xC0000124	Parameter error
0xC0000125	Station address error
0xC0000140	Network fault occurred
0xC0000141	Communication connection ended
0xC0000142	Communication connection time limit exceeded
0xC0000145	Communication cable connection defective
Others	Inquiry



l  Error count: Communication error accumulated count
