3.5. Axis additional weight

Move to the Axis Additional menu. In order to calculate load accurately, it is required to enter the additional weight information (weight, x axis weight center, and z axis weight center) of each axis. The additional weight includes plates, signal boxes, and cables installed to the frame.

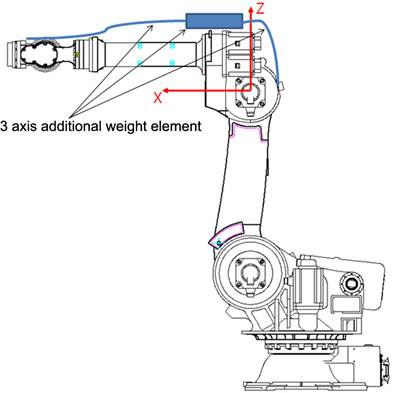

The following shows the coordinates for entering the additional weight of 3 axes
