3. Load Estimation Menu Description



Execute the Load Estimation from 『[F2]: System』→『6: Automatic constant setting』→『4: Load estimation function』



※ When selecting the 『4: Load Estimation function』 menu, the motor will be in ‘On’, For Load Estimation motion operation, the motor will automatically be in ‘Off’.

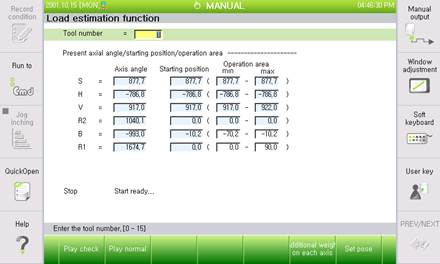

Figure 3.1 Load Estimation function screen



3.1. Tool number

3.2. Operation area

3.3. Play check

3.4. Play normal

3.5. Axis additional weight

3.6. Position designation
