3.3. Connection between the BD574 board and DeviceNet​



When the embedded DeviceNet slave needs to be connected to the master through the DB574 extension CAN board, it can be connected to DeviceNet through the open type 5Pin connector of the BD574 board as shown in the figure below.

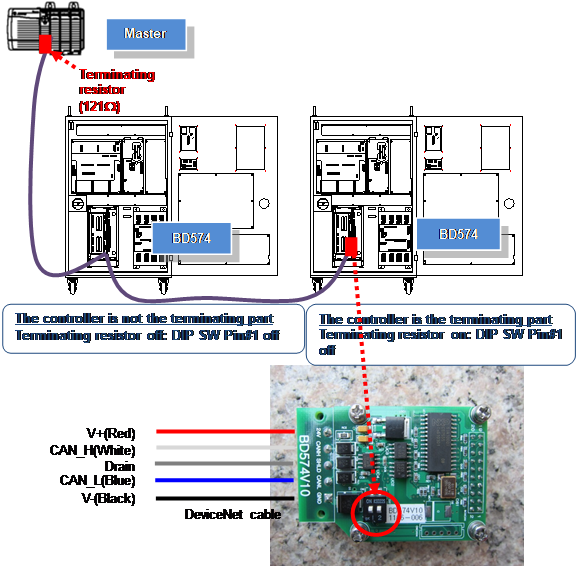

Figure 3.5 BD574V10 board cable connection
