3.1. CAN port of the embedded DeviceNet slave

3.1. CAN port of the embedded DeviceNet slave​



The embedded DeviceNet slave can be connected to the DeviceNet master through the CAN port mounted on the main board or the CAN port mounted on the BD574 extension CAN board depending on how the user sets.



Refer to [4.1 Information and setting for the embedded DeviceNet slave].

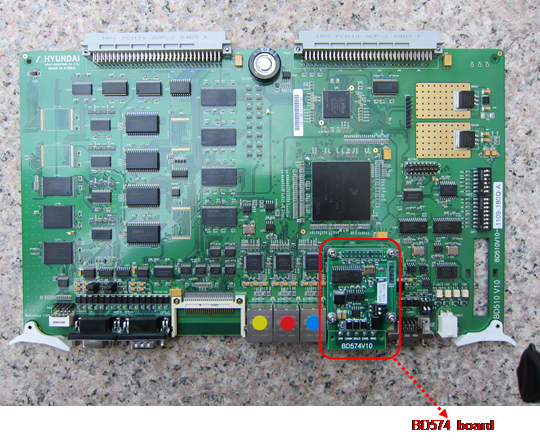

Figure 3.1 BD510V10 with the BD574 mounted on it
