2.3.1. Setting of BD58AV10 and BD58AV20, and the connectors

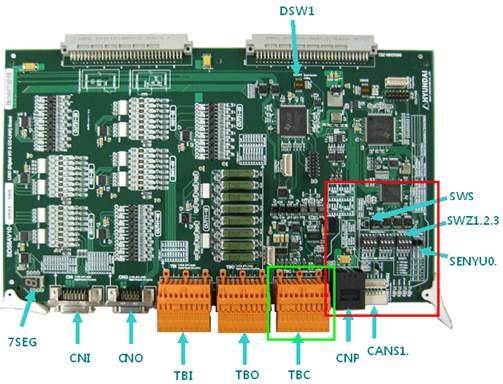

Figure 2.5 LDIO board (BD58AV10, BD58AV20)

As the exclusive board for Hi5-C Controller used for LCD production, BD58A LDIO board has the DIO board and CC-Link slave function and is installed on the track to ensure internal space of the controller.

Set by applying the same method that is used for BD570V10.

Table 2‑6 Setting the station number and the communication speed for BD58AV10 and BD58AV20

Switch name	Switch number	Explanation	Remarks
SW1	1	Setting the station number (10 unit input): ´ 80	1~64
	2	Setting the station number (10 unit input): ´ 40
	3	Setting the station number (10 unit input): ´ 20
	4	Setting the station number (10 unit input): ´ 10
SW2	1	Setting the station number (1 unit input): ´ 8
	2	Setting the station number (1 unit input): ´ 4
	3	Setting the station number (1 unit input): ´ 2
	4	Setting the station number (1 unit input): ´ 1
SW3	1	Setting the baudrate: ´ 8	0(0000)=156Kbps 1(0001)=625Kbps 2(0010)=2.5Mbps 3(0011)=5Mbps
	2	Setting the baudrate: ´ 4
	3	Setting the baudrate: ´ 2
	4	Setting the baudrate: ´ 1

Table 2‑7 Setting the number of occupied stations of BD58AV10 and BD58AV20

SENYU0	SENYU1	Number of stations
Open	Open	1
Short	Open	2
Open	Short	3
Short	Short	4

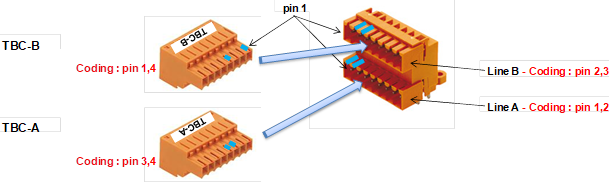

Figure 2.6 Terminal Block TBC for Serial Communication on LDIO Board (BD58A)

The purpose of TBC-A is for RS232 and RS485 communication, and TBC-B is the terminal block for CC-Link communication. Refer to [Table 2-8].

Table 2‑8 Terminal Configuration of LDIO Board (BD58A) Terminal Block TBC

Terminal block name	Terminal number	Signal name	Function description
TBC - B	1	DA	CC-LINK DA line
	2	DB	CC-LINK DB line
	3	DG	CC-LINK ground
	4	Shield3	CC-LINK cable shield
	5	FG3	CC-LINK cable ground
	6	DA	CC-LINK DA line
	7	DB	CC-LINK DB line
	8	DG	CC-LINK ground
	9	Shield3	CC-LINK cable shield
	10	FG3	CC-LINK cable ground
