2.1. BD570V10 CC-Link setting

Station numbers are on BD570V10 board: 3 dip switches (SW1, SW2, and SW3) to set the communication speed, and 2 jumpers (SENYU0 and SENYU1) to set the number of stations.

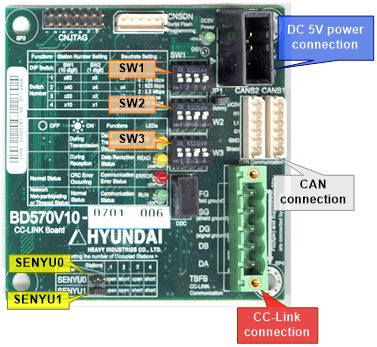

Figure 2.1 BD570V10 CC-Link module

Table 2-1 shows the individual functions of the dip switches related to the setting of the station number and communication speed.

Table 2‑1 Switches for the setting of the station number and communication speed for BD570V10

Switch name	Switch number	Description
SW1	1	Station number setting (10 unit input): ´ 80
	2	Station number setting (10 unit input): ´ 40
	3	Station number setting (10 unit input): ´ 20
	4	Station number setting (10 unit input): ´ 10
SW2	1	Station number setting (1 unit input): ´ 8
	2	Station number setting (1 unit input): ´ 4
	3	Station number setting (1 unit input): ´ 2
	4	Station number setting (1 unit input): ´ 1
SW3	1	Baudrate setting: ´ 8
	2	Baudrate setting: ´ 4
	3	Baudrate setting: ´ 2
	4	Baudrate setting: ´ 1

Station number can be set in the range of “1~64”.

Baudrate can be set with one of the 5 digits in the range of “0~4”. The speed for each number is described in [Table 2-2].

Table 2‑2 BD570V10 CC-Link Speed Setting

Dip switch setting (Binary)	Speed
0 (0000)	156kbps
1 (0001)	625kbps
2 (0010)	2.5Mbps
3 (0011)	5Mbps

For example, if you want to set the speed of 2.5Mbps for Station 13, the dip switch is set as shown in [Figure 2.2].

Figure 2.2 Example of Dip Switch Setting (Station Number: 13, Speed Number: 2)

Also, you can use the two jumpers, JP1 and JP2, to adjust the number of stations.

Table 2‑3 Setting the number of occupied stations of BD570V10

SENYU0	SENYU1	Number of station
Open	Open	1
Short	Open	2
Open	Short	3
Short	Short	4

Figure 2.3 Example of Number of Station Setting (Number of Station: 3)
