3.5.4. Dimension of Installation Surface



Fix the swivel base for robot's installation.

Refer to [Figure 3.7] for the dimension.

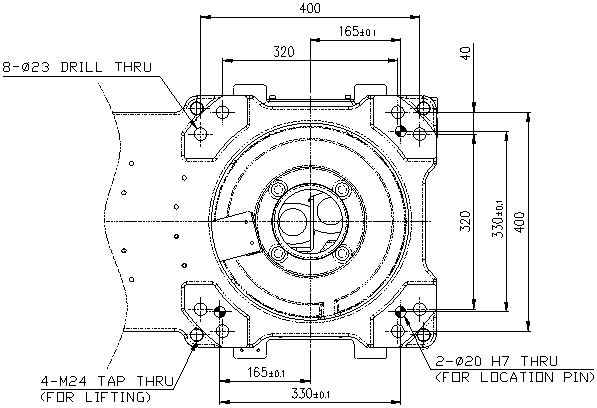

Figure 3.7 Dimension of Robot Installation (YS140D)
