9. Internal Wiring Diagram
Internal wiring is shown in a connection diagram per unit, and thus utilizes it to inspect and replace the wiring.

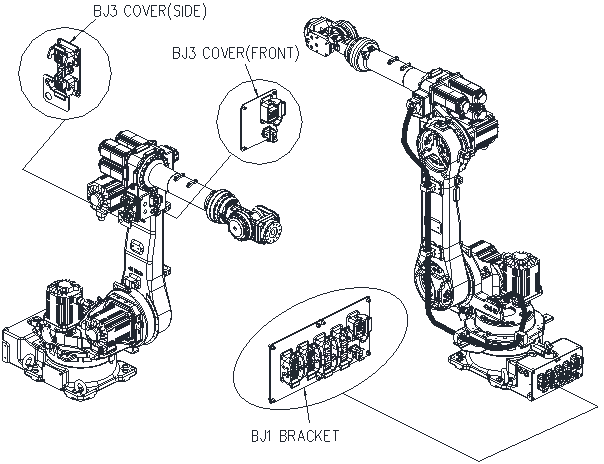

Figure 9.1Manipulator Configuration
Internal wiring is shown in a connection diagram per unit, and thus utilizes it to inspect and replace the wiring.
Figure 9.1Manipulator Configuration
