4.3. Inspection of Main External Bolts
4.3. Inspection of Main External Bolts
The recommended bolt torque is shown in [Figure 4.1].
Apply the appropriate torque, where required, using the torque wrench and place the paint marking where the check-up is completed.
Table 4‑3 Inspection part for main bolts
No. | Inspection parts | No. | Inspection parts |
1 | S axis reducer seal bolt | 5 | V axis reducer seal bolt |
2 | S/V axis motor seal bolt | 6 | R2/B/R1 axis motor seal bolt |
3 | H axis reducer seal bolt | 7 | Arm Pipe assembly seal bolt |
4 | H axis motor seal bolt | 8 | Wrist Base Seal Bolt |

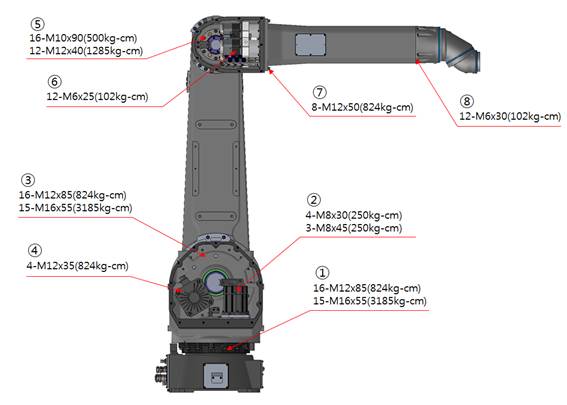

Figure 4.1 Inspection part for main bolts
