3.3.2. Forklift use

A forklift can be used to carry the main body of the robot. The bracket for the forklift transporting, as an option, is provided.

For safety reasons, please pay attention to the following procedures:

l With reference to the pictures provided, use the standard position of each model.

l Before forking, fasten each bracket(2) for forklift to the left and right side of A2 Frame with 4 pieces of M12 bolts and flat washer.

l Carry at a slow speed.

l Follow all safety regulations.

Cautions

l Do not lean against the robot while carrying it.

l Make sure the robot does not collide with the floor while loading and unloading.

l Pay attention to the relevant safety rules while using the forklift truck.

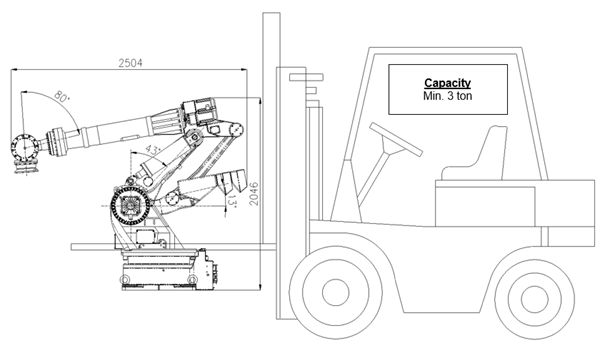

Figure 3.4 How to Transport : Using forklift
