3.2. Inspection of Key External Bolts
3.2. Inspection of Key External Bolts
A torque wrench must be used to carry out fastening with a proper torque, and then marking with paint should be performed.
Table 3-3 Key Bolts to Inspect
No. | Bolts to inspect | No. | Bolts to inspect |
1 | Preload Flange Attachment Bolt | 7 | Box Cover Attachment Bolt |
2 | Plate Cover Attachment Bolt | 8 |
|
3 | Taper Bearing Flange Attachment Bolt | 9 |
|
4 | Taper Bearing Pre-Pressure Adjustment Bolt | 10 |
|
5 | Reducer Plate | 11 |
|
6 | Taper Bearing Flange Fixing Bolt |
|
|

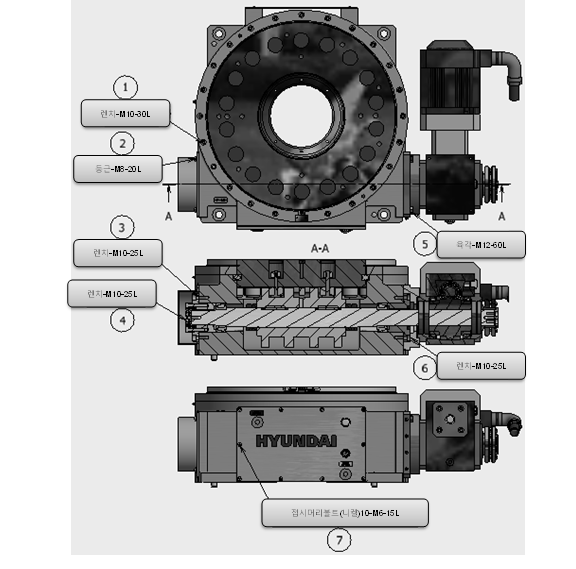

Figure3.2 Key Bolts to Inspect
