1.5. Detailed Drawing of the Output Side Attachment Surface

1.5. Detailed Drawing of the Output Side Attachment Surface



The specific types of bolts for individual models should be used to attach a working tool to the mechanical interface of the R axis.

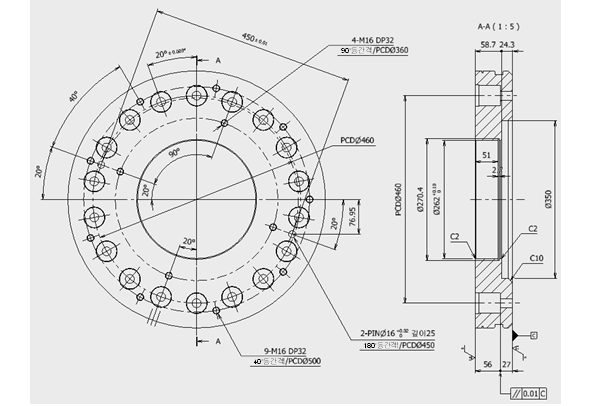

Figure 1.7Detailed Drawing of the Mechanical Interface Attachment Surface
