9.4.2. AssembleAssembled Gas Spring Substances​



The H-axis angle must be assembled in the position as shown in [Figure 9.6] to assemble assembled gas spring substances. Assembly is available at this position because a compressive force of the balance spring had been minimized in the position.

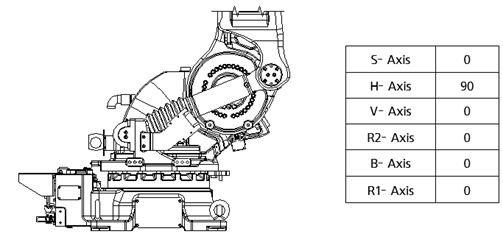

Figure 9.6 Gas Spring Assembly Position



Warning



ü  Fasten or loosen a bolt of the hinge in figure 9.7 by rotating a bolt at the top and the bottom alternately by 45° or less to prevent excessive tilting in the separation and assembly of assembled gas spring substances.

ü  Excessive tilting of the hinge damages a screw bolt; the damaged screw bolt damages the tap of the lower frame, thereby making it hard to separate/assemble.

ü  The shape of each part, such as the hinge, is subject to change depending on a mass production design.

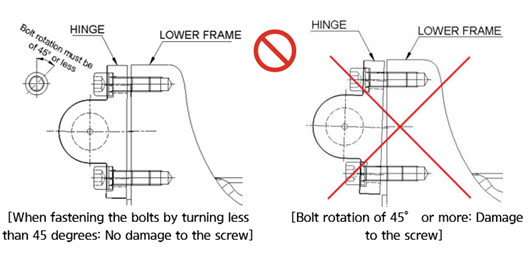

Figure 9.7 Cautions on Fastening and Loosening the Gas Spring Hinge
