4.3. Inspection of Main External Bolts

4.3. Inspection of Main External Bolts​



The recommended bolt torque is shown in [Figure 4.1].

Apply the appropriate torque, where required, using the torque wrench and place the paint marking where the check-up is completed



 Table 4‑3 Inspection part for main bolts

No.

Inspection parts

No.

Inspection parts

1

H-axis reduction gear seal bolt

7

ARM PIPE seal bolt

2

H-axis motor seal bolt

8

R2-axis reduction gear seal bolt

3

V-axis reduction gear seal bolt

9

Grip assembly seal bolt

4

V-axis motor seal bolt

10

B-axis reduction gear seal bolt

5

Upper plate of balance spring seal bolt

11

R1-axis reduction gear seal bolt

6

Contraction motor seal bolt

12

End effect seal bolt

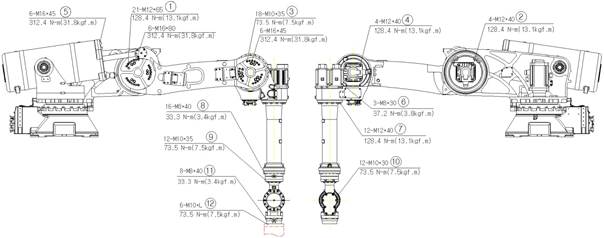

Figure 4.1 Inspection Part for Main Bolts [HS165S]
