2.7. Details of Upper 1st ARM Attachment Surface



There is a Tap in upper 1st ARM to attach peripheral equipment.

Attach peripheral equipment within the range marked as ▦.



[Attention]

Attach peripheral equipment to the upper side of the 1st ARM, or to only one side of upper axis V. When attaching, be sure to the center position of gravity should be located within the range marked as ▦.



n  Max weight on the 1st ARM : 25kg

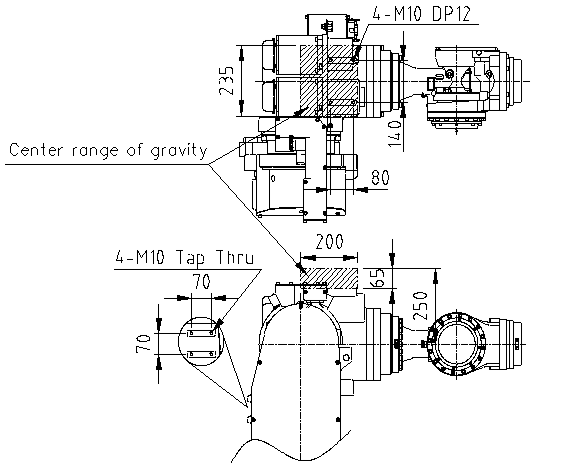

Figure 2.6 Details of Upper 1st ARM Attachment Surface
