2.4. Robot Dimension and Working Envelope

2.4. Robot Dimension and Working Envelope

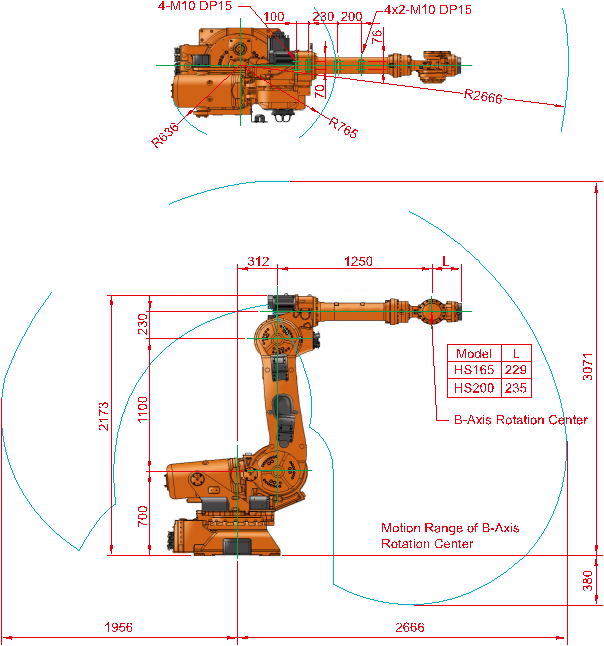

Figure 2.3 Robot Dimension and Working Envelope: [HS165/HS200]

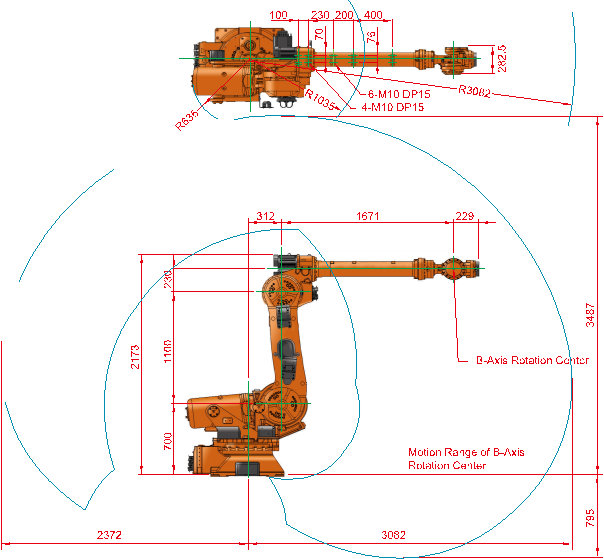

Figure 2.4 Robot Dimension and Working Envelope: [HS150L]
