4.3. Inspection of Main External Bolts
4.3. Inspection of Main External Bolts
The recommended bolt torque is shown in [Figure 4.1] ~ [Figure 4.2].
Apply the appropriate torque, where required, using the torque wrench and place the paint marking where the check-up is completed.
Table 4‑3 Inspection part for main bolts
No. | Inspection parts | No | Inspection parts |
1 | For fixing the motor base of axes H and V’s reducer | 6 | C-link seal |
2 | H, V axis motor fixation | 7 | T-link seal |
3 | Balance Spring fixation | 8 | R2 axis motor fixation |
4 | Link fixation | 9 | R2 axis Reduction Gear fixation |
5 | R-link seal | 10 | End effect fixation |

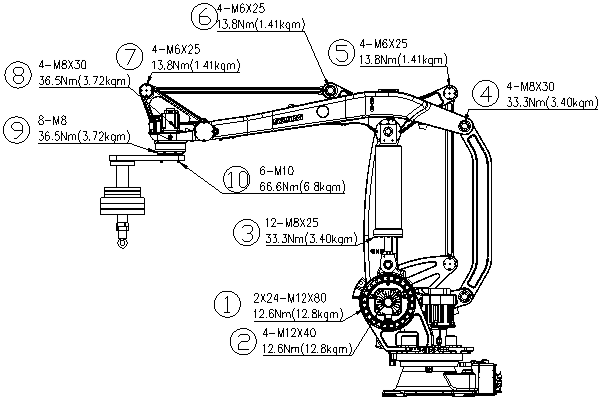

Figure 4.1 Inspection Part for Main Bolts
