3.3.2. Using fork lift

3.3.2. Using fork lift



A forklift can be used to move the robot’s body.



Observe the following procedures for safety.



l Let each model take a basic position by referring to the picture.

l Bolt the robot on a pallet and push the forks of the forklift into the pallet, and then move the pallet. The pallet must be strong enough to endure the robot’s weight.

l Move it at a low speed.

l Follow the safety regulations.



 Precautions



l Do not lean against the robot’s body while moving it.

l Ensure that the robot’s body does not collide with the floor while loading/unloading it.

l Follow the safety rules while operating the forklift.







S- Axis	0
H- Axis	130
V- Axis	-55
R2- Axis	0

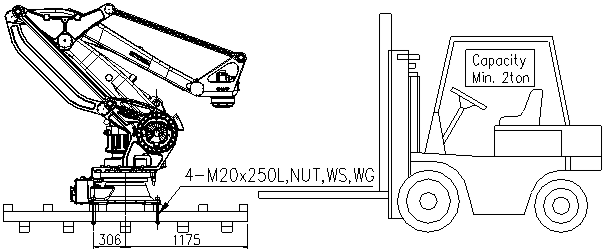

Figure 3.4 How to Transport: Using fork lift
