2.4. Robot Dimension and Working Envelope

2.4. Robot Dimension and Working Envelope​



Figure 2.3Robot Dimension and Working Envelope:[HH4L]





Figure 2.4Robot Dimension and Working Envelope:[HH7]





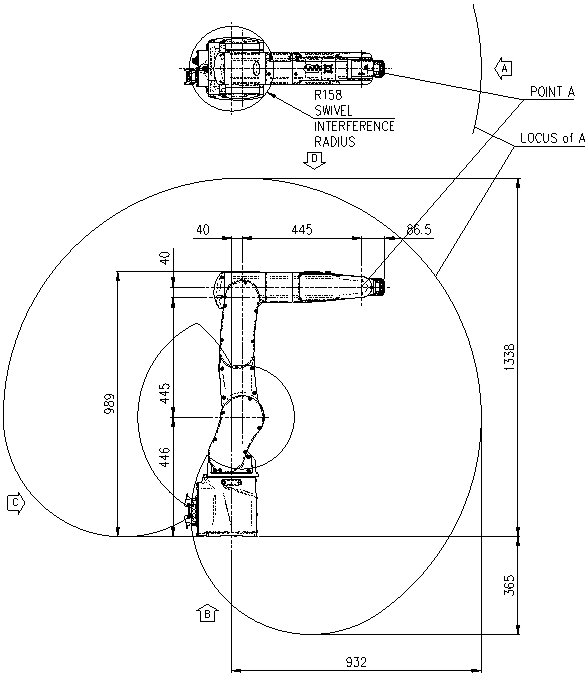

Figure 2.5Robot Dimension and Working Envelope:[HH7E]



Figure 2.6Robot Dimension and Working Envelope:[HH8]
