3.4.5. Dimension of Installation Surface

3.4.5. Dimension of Installation Surface



Assemble the main body of the robot on the common base, Refer to the following dimensions.

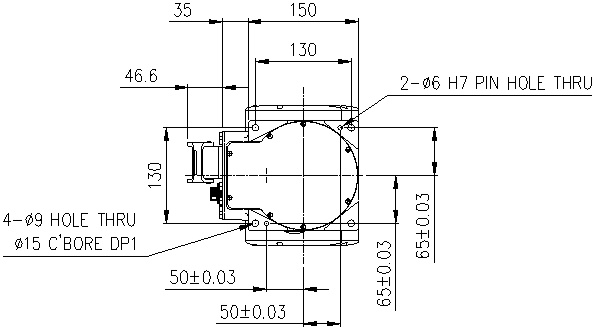

Figure 3.6Robot installation surface dimension (HH4/HH4E)
